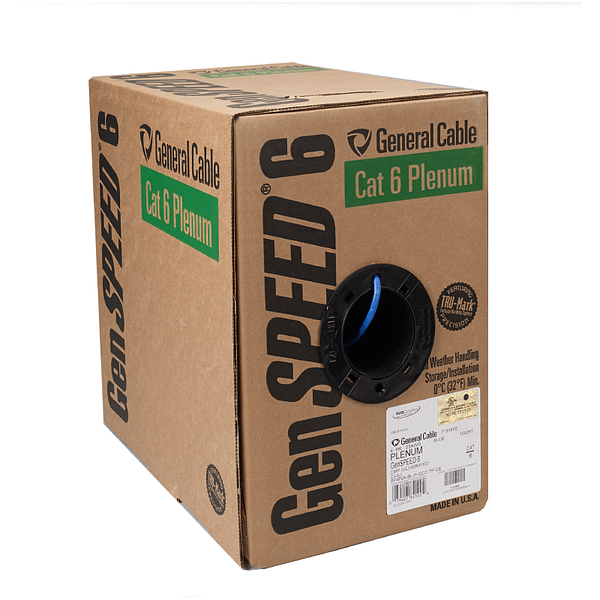

General Cable 7131800 Cat6 Plenum Cable 1000ft – Blue
General Cable’s GenSPEED™ Cat6 CMP Plenum 4 pair UTP cable with a blue jacket supports 1 GbE performance guaranteed to 350 MHz. The General 7133800 category 6, 23AWG ethernet cable provides considerable margin above performance requirements specified in TIA/EIA-568-C.2 and ISO/IEC 11801 (2nd edition) standards and comes in a Pull Box.
Features and Benefits
- Unique tape design engineered for smaller overall diameter and ease of installation
- Positive PSACR up to 350MHz for future bandwidth requirements
- Every master reel is tested for electrical performance compliance
- TRU-Mark™ print legend contains footage marking from 1000′ to 0′
- Unique product-specific packaging for ease of identification
- UL Verified for guaranteed performance
- Application assurance warrant
- Blue
Free Shipping all over the USA
Availability:
Out of stock
$249.00
Out of stock
General Cable 7131800 Cat6 Plenum Cable 1000ft – Blue with guaranteed performance that meets Category 6 cable requirements.
| Weight | 11793.40 g |
|---|---|
| Dimensions | 11 × 17 × 17 in |
| Category | Category 6 |

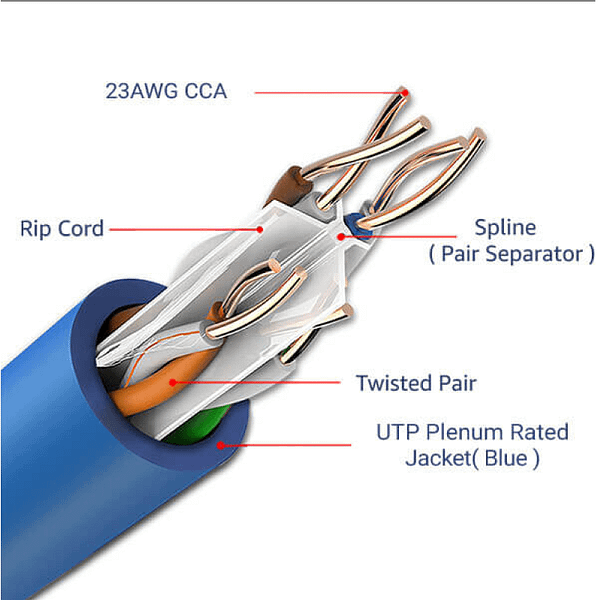

| Conductor Size | 23 AWG (AMERICAN WIRE GAUGE) |
| Conductor Type | CCA (Copper Clad Aluminum) – Solid |
| Cable Jacket | UTP Plenum |
| Jacket Color | Blue |
| Shielded | U/UTP – UNSHIELDED TWISTED PAIR |
| Frequency | 350MHz |
| Insulation | PVC |
| Max Length | 1000 ft |
